CASE REPORT



Distal and Proximal Tibiofibular Dislocation: A Maisonneuve Equivalent. Case Report



Juan Manuel Romero Ante, Juan Sebastián Nanclares

Orthopedics and Traumatology Service, Hospital Alma Mater de Antioquia, Medellin, Colombia



ABSTRACT

We present a 32-year-old male patient with simultaneous dislocation of the proximal and distal tibiofibular joint without associated fibula fracture, an atypical injury and with very few cases described in the literature, presented after a sports trauma. By mechanism of trauma and analysis of the injury, it is set up parallel with a Maisonneuve injury. The diagnosis was made by radiographs which showed a diastasis in the proximal tibiofibular joint and an increase in the medial clear space in the ankle. Treatment included closed reduction of the proximal dislocation and an open reduction with internal fixation of the distal dislocation. After twelve months of follow-up, the patient showed a complete recovery, without pain or instability, and with a satisfactory American Orthopedic Foot and Ankle Society Score (AOFAS) score, which allowed him to resume his sports and work activity.

Keywords: Ankle injury; interosseous membrane; surgical treatment; syndesmosis lesion; tibiofibular diastasis; Maisonneuve fracture.

Level of Evidence: IV



Luxación tibioperonea distal y proximal: equivalente de Maisonneuve. Reporte de un caso



RESUMEN

Se presenta el caso de un hombre de 32 años con luxación simultánea de la articulación tibioperonea proximal y distal, sin fractura asociada del peroné, ocurrida luego de un trauma deportivo. Se trata de una lesión atípica y con muy pocos casos publicados. Por el mecanismo de trauma y el análisis de la lesión, se establece un paralelo con una lesión de Maisonneuve. Se llega al diagnóstico con radiografías que mostraron una diástasis en la articulación tibioperonea proximal y un aumento del espacio claro medial en el tobillo. El tratamiento incluyó la reducción cerrada de la luxación proximal y una reducción abierta con fijación interna de la luxación distal. Tras 12 meses de seguimiento, la recuperación del paciente era completa, no tenía dolor ni inestabilidad, el puntaje de la AOFAS era satisfactorio, y retomó su actividad deportiva y laboral.

Palabras clave: Lesión de tobillo; membrana interósea; tratamiento quirúrgico; lesión de sindesmosis; diástasis tibioperonea; fractura de Maisonneuve.

Nivel de Evidencia: IV



INTRODUCTION

The proximal tibiofibular joint is formed by the lateral aspect of the lateral tibial plateau and the fibular head, with articular cartilage and synovium interposed between them. It is stabilized by a fibrous capsule and two ligaments: the anterosuperior tibiofibular ligament, composed of two or three flat bands that are thicker and stronger than its counterpart, and the posterosuperior tibiofibular ligament, which consists of a single band. This joint may be classified according to its configuration as either horizontal or oblique. The horizontal configuration provides a larger articular surface and greater rotational mobility, whereas the oblique configuration, because of its smaller articular surface and reduced rotational mobility, is more prone to dislocation.1

The distal tibiofibular syndesmosis is a fibrous joint formed by the tibia and fibula, which are maintained together within the fibular notch of the tibia by four ligaments: the anteroinferior tibiofibular ligament, the posteroinferior tibiofibular ligament, the transverse ligament, and the interosseous ligament, the latter being a direct continuation of the interosseous membrane. This joint may be injured in approximately 50% of Weber type B fibular fractures and in all type C fractures. In ankle sprains, the reported incidence ranges from 1% to 11%.2

The high fibular fracture caused by a pronation-external rotation mechanism associated with injury to the distal tibiofibular syndesmosis was first described by the French surgeon Jules Germain Maisonneuve in 1840, although the eponym was later popularized by his compatriots Quenu, Chaput, and Destot. Currently, the most widely accepted definition of a Maisonneuve injury is a fracture of the proximal fourth of the fibula associated with injury to at least the anteroinferior tibiofibular ligament and the interosseous ligament, usually extending to involve the medial column of the ankle.3

The simultaneous occurrence of proximal and distal tibiofibular dislocation without an associated fibular fracture is an extremely rare injury, with only a few cases reported in the literature.

We present the case of a patient who sustained this injury following sports-related trauma, including its diagnosis, management, and clinical and radiographic outcomes.



CLINICAL CASE

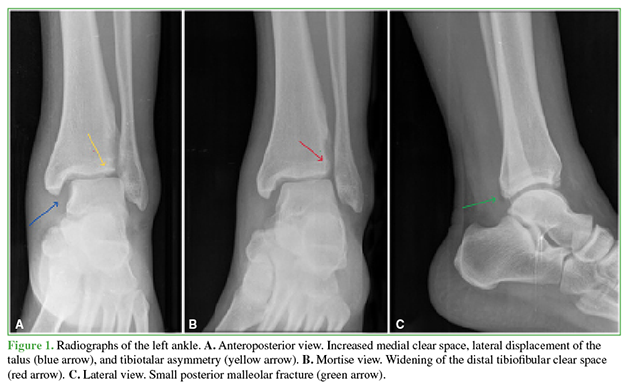

A 32-year-old man with no relevant medical history presented to the emergency department after sustaining an eversion and rotational injury to his left ankle while playing soccer 24 hours earlier. He reported severe pain, functional impairment, and inability to bear weight on the affected limb. Physical examination revealed bimalleolar swelling and tenderness, a positive squeeze test over the mid and distal thirds of the leg, and tenderness along the lateral aspect of the fibula at its proximal fourth. No wounds or distal neurovascular deficits were identified. Ankle trauma series radiographs were obtained. The images showed only widening of the medial clear space and findings suggestive of a posterior malleolar fracture (Figure 1).

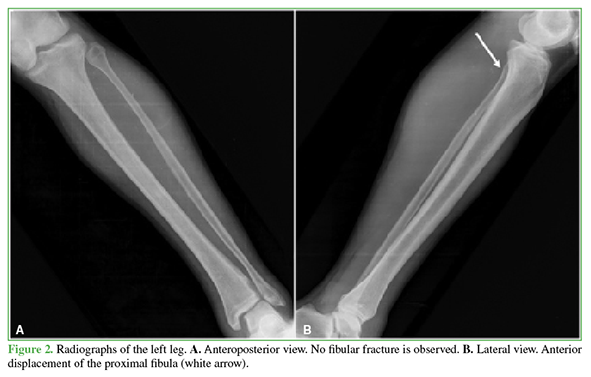

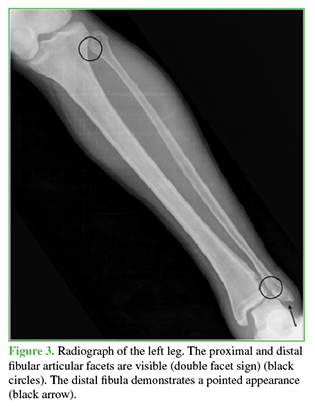

Radiographs of the leg demonstrated diastasis of the proximal tibiofibular joint without evidence of a fracture of the proximal fourth of the fibula (Figure 2). In addition, visualization of both the proximal and distal fibular articular facets was noted, an indirect sign of simultaneous tibiofibular dislocation, with the distal fibula in external rotation (Figure 3).4















A diagnosis of simultaneous proximal and distal tibiofibular dislocation associated with injury to the medial ankle complex and a posterior malleolar fracture, without an associated fibular fracture, was established. The patient was immobilized with a splint, and reduction and stabilization were scheduled for the day of admission.



Surgical Technique

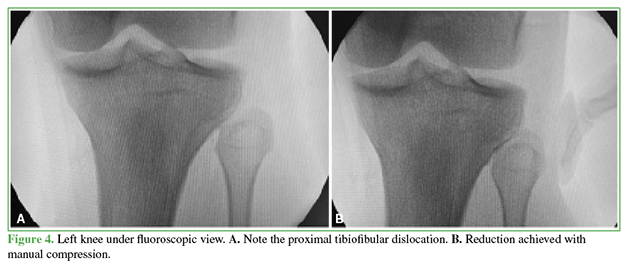

The patient was placed in the supine position and received spinal anesthesia and intravenous antibiotic prophylaxis. No tourniquet was used. Fluoroscopic guidance was employed throughout the procedure to assess the injury pattern (Figure 4).

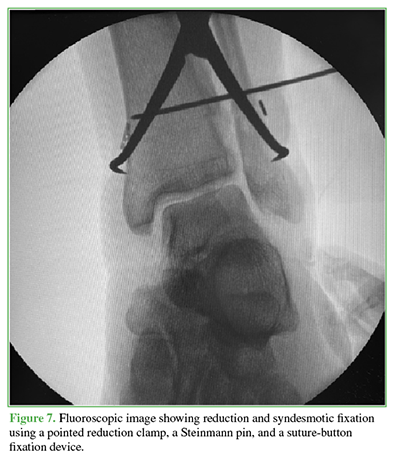

With the knee flexed, the proximal tibiofibular dislocation was reduced by applying anteroposterior compression to the fibular head. A distal anterolateral approach to the ankle was then performed. After protecting the superficial peroneal nerve, syndesmotic diastasis was identified, with lateral displacement of the talus and external rotation of the fibula (Figure 5). Using a Steinmann pin as a joystick in the distal fibula, the external rotation deformity was corrected and the fibula was temporarily fixed to the tibia. Subsequently, through a lateral approach to the fibula, a pointed reduction clamp was applied, and a tibiofibular suture-button fixation device was inserted, along with a syndesmotic screw to enhance construct stability (Figures 6 and 7).



















Intraoperative stability testing of both the proximal and distal tibiofibular joints demonstrated that reduction had been maintained and that both joints were stable. The posterior malleolar fracture was not considered amenable to surgical fixation because of its small size and minimal articular involvement.

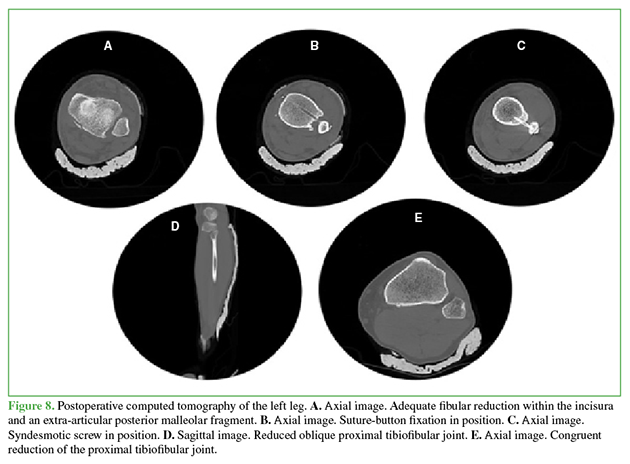

The patient remained hospitalized for 24 hours. A postoperative computed tomography scan confirmed satisfactory reduction of both dislocations, appropriate positioning of the implants, and the absence of additional injuries (Figure 8).

The patient was discharged with an ankle orthosis and instructed to remain non-weight-bearing. Physical therapy was initiated during the third postoperative week. Protected weight-bearing was allowed at 6 weeks, progressing to full weight-bearing at 3 months.

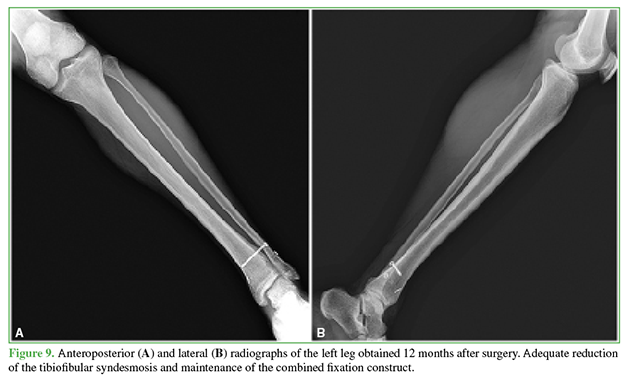

At 12 months of follow-up, the patient reported no pain and showed no clinical or radiographic evidence of instability of either the knee or the ankle (Figure 9). He had returned to both work and sports activities. His score on the American Orthopaedic Foot & Ankle Society (AOFAS) scale was 97/100.













DISCUSSION

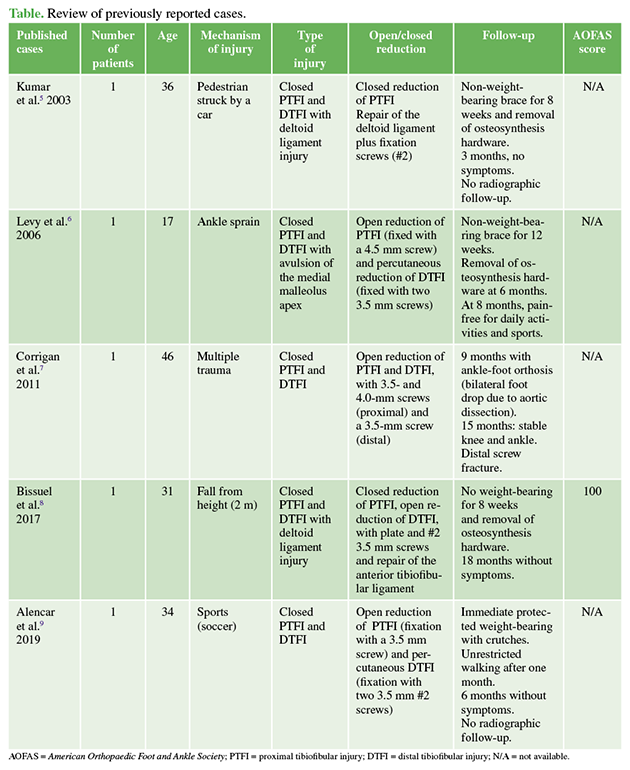

Simultaneous injury to the proximal and distal tibiofibular joints is uncommon. Very few cases have been reported, and no standardized treatment protocol has been established because of the heterogeneity of the available studies. Reported follow-up ranges from 6 to 12 months, although outcomes have generally been satisfactory (Table).5-9 Proximal tibiofibular dislocation is estimated to account for approximately 1% of all knee injuries; however, the rate of missed diagnosis may be as high as 60%.10 The injury mechanism typically involves either high-energy trauma or sports-related trauma causing knee flexion (which relaxes the dynamic stabilizers and renders the joint vulnerable) combined with rotational forces,11 similar to the mechanism observed in our patient.

For radiographic diagnosis, the most commonly cited landmark is the Resnick line, a radiopaque line seen on the lateral knee radiograph that corresponds to the posterior aspect of the lateral tibial plateau and should intersect the midpoint of the fibular head. An anterior displacement of the fibular head relative to this line suggests anterior dislocation.12

Ogden classified this injury into four categories: atraumatic subluxation (3%), anterolateral dislocation (85%), posteromedial dislocation (10%), and superior dislocation (2%). This is a highly heterogeneous injury with limited representation in the current literature; consequently, there is no clear consensus regarding treatment. Management options range from nonoperative treatment to ligament repair or reconstruction, proximal tibiofibular arthrodesis, and proximal fibular head resection.13,14

In our case, once a stable closed reduction of the proximal tibiofibular dislocation had been achieved, we elected not to perform fixation or use external immobilization, such as a brace or splint, in order to avoid knee stiffness and facilitate earlier rehabilitation.

For the distal tibiofibular injury, open reduction and internal fixation was performed because closed reduction of the fibula into the fibular notch with percutaneous syndesmotic fixation is strongly contraindicated.15 The patient underwent surgery on the day of admission to our institution, 24 hours after the injury. In this case, the patient had not one but two dislocations, and joint dislocations constitute an orthopedic emergency that should be reduced as soon as possible, particularly when multiple injuries affect the same limb segment.











The distal tibiofibular syndesmosis was stabilized using a combination of flexible fixation (suture-button fixation) and rigid fixation (a syndesmotic screw), based on current recommendations advocating augmentation in axially unstable fibular injuries, such as Maisonneuve injuries, and considering its similarity to our patient’s injury (proximal dislocation).16,17

Current evidence does not support routine repair of the deltoid ligament in Maisonneuve injuries unless concentric reduction of the medial clear space cannot be achieved after fibular reduction because of deltoid ligament interposition, or unless gross valgus instability persists.18 In our patient, restoration of the medial clear space was achieved following fixation and remained stable; therefore, neither exploration nor repair of the deltoid ligament was performed.

At the time of this report, the patient has experienced no symptoms related to either the flexible or rigid fixation constructs, thus implant removal has not been scheduled.



CONCLUSIONS

This case report highlights the importance of carefully analyzing the injury sustained by the patient, understanding the trauma mechanism, and correctly interpreting diagnostic studies in order to ensure timely management of atypical injuries, such as simultaneous proximal and distal tibiofibular dislocation without an associated fibular fracture.

The treatment strategy consisted of closed reduction of the proximal dislocation and open reduction with internal fixation of the distal injury. This approach resulted in complete recovery without complications, supporting its effectiveness and suggesting that it may be considered in similar cases in the future.

To the best of our knowledge, this represents the sixth reported case of combined proximal and distal tibiofibular dislocation without an associated fibular fracture. Given the absence of large case series, it remains difficult to propose evidence-based treatment guidelines for this uncommon injury. At present, management must rely on the recommendations established for each component injury individually.
