CLINICAL RESEARCH



Outcomes of Distraction Subtalar Arthrodesis for the Treatment of Calcaneal Fracture Malunion: A Case Series



Enzo Sperone,* Andrés Bigatti, *,** Juan Ignacio Cardelle, ** Jonathan Abad, ** Alejandra Barrera Plazas, * Diego F. Ríos Murillo**

*Centro Talus, Autonomous City of Buenos Aires, Argentina

**Foot, Ankle, and Leg Unit, Orthopedics and Traumatology Service, Hospital Español, Autonomous City of Buenos Aires, Argentina



ABSTRACT

Objectives: The objective of this study is to evaluate and analyze the outcomes of a series of patients diagnosed with calcaneal fracture malunion treated with distraction subtalar arthrodesis. Materials and Methods: Nine patients (five women and four men; mean age, 56.3 years) were retrospectively evaluated, with a mean follow-up of 31.28 months. Weight-bearing lateral radiographs were used to assess talocalcaneal height, talar declination angle, calcaneal declination angle, and Meary’s angle. Clinical outcomes were evaluated using the Visual Analog Scale (VAS) for pain and the American Orthopaedic Foot & Ankle Society (AOFAS) Ankle-Hindfoot Score. Patient satisfaction was also assessed. Results: Talocalcaneal height increased by 0.7 cm, talar declination angle by 4.5°, CP by 1.3°, and Meary’s Angle decreased by 4.8°. The VAS pain score decreased by 5.8 points, and the AOFAS score increased by 50 points. Eight patients reported being very satisfied and one patient was satisfied with the outcome. Conclusions: Distraction subtalar arthrodesis provides excellent clinical and radiographic outcomes in patients with calcaneal fracture malunion. It reduces pain and improves function while restoring hindfoot height and talar declination.

Keywords: Calcaneal fracture; malunion; subtalar arthrodesis.

Level of Evidence: IV



Resultados de la artrodesis subastragalina distractiva en el tratamiento de secuelas de una fractura de calcáneo: serie de casos



RESUMEN

Objetivos: Evaluar y analizar los resultados de una serie de pacientes con diagnóstico de secuela de una fractura de calcáneo tratados con artrodesis subastragalina distractiva. Materiales y Métodos: Se evaluó, en forma retrospectiva, a 9 pacientes (5 mujeres y 4 hombres; edad promedio 56.3 años), con un seguimiento de 31.28 meses. En las radiografías de perfil con carga, se evaluaron la altura astrágalo-calcánea, el ángulo de declinación del astrágalo, el ángulo de declinación del calcáneo y el ángulo de Meary. Se emplearon la escala analógica visual para dolor y la escala de la AOFAS de tobillo y retropié, y se determinó la satisfacción del paciente. Resultados: La altura astrágalo-calcánea aumentó 0,7 cm; el ángulo de declinación del astrágalo, 4,5°; el ángulo de declinación del calcáneo, 1,3° y el ángulo de Meary disminuyó 4,8°. La medición en la escala analógica visual disminuyó 5,8 puntos y la de la escala AOFAS aumentó 50 puntos. Ocho pacientes se manifestaron muy satisfechos y uno, satisfecho con el resultado. Conclusiones: La artrodesis subastragalina distractiva logra muy buenos resultados clínico-radiográficos en pacientes con diagnóstico de secuela de una fractura de calcáneo, disminuye el dolor y mejora la funcionalidad del paciente, al tiempo que restaura la altura del retropié y la declinación del astrágalo.

Palabras clave: Fractura de calcáneo; consolidación viciosa; artrodesis subastragalina.

Nivel de Evidencia: IV



INTRODUCTION

The sequelae of calcaneal fractures may be associated with a variety of structural and functional abnormalities of the hindfoot that result in pain and significant functional impairment, including peroneal tendon pathology, subtalar arthritis and stiffness, varus or valgus malalignment, and widening of the calcaneus.1-3 Subtalar arthrodesis is the most commonly used salvage procedure because, when combined with other techniques such as osteotomies and lateral wall exostectomy, it has proven effective in relieving pain and correcting malunion deformities.4-6 Severe collapse of the posterior facet represents a more challenging scenario because it leads to secondary loss of talar declination and decreased hindfoot height, potentially resulting in anterior ankle pain, reduced ankle dorsiflexion, and diminished triceps surae function if not adequately corrected.7–9 In 1988, Carr et al.4 reported their results using distraction subtalar arthrodesis in these situations, and since then, several studies have demonstrated favorable outcomes with this technique.1–9 Despite these encouraging results, there is still no consensus regarding certain aspects of the procedure, such as the optimal graft material or fixation method.

The aim of this study was to evaluate and analyze the outcomes of a series of patients with calcaneal fracture malunion treated with distraction subtalar arthrodesis.



MATERIALS AND METHODS

A retrospective review was performed of a series of patients with calcaneal fracture malunion following an intra-articular calcaneal fracture who were treated with distraction subtalar arthrodesis and had a minimum follow-up of 6 months.

Patients treated with in situ subtalar arthrodesis, those with other ipsilateral leg, ankle, or foot injuries, and those with diabetes or neurological disease were excluded.

Eleven patients treated by the senior authors between May 2015 and December 2022 were identified. Four were excluded from the final analysis: one because follow-up was shorter than 6 months at the last evaluation, one because of an ipsilateral ankle fracture, and two because adequate preoperative clinical and radiographic assessments were unavailable. The final cohort consisted of 7 patients (5 women and 2 men) ranging in age from 36 to 74 years (mean age 61 years).

During the acute phase, four patients had been treated nonoperatively, one had undergone open reduction and internal fixation, and two had received no treatment because the initial injury had gone unrecognized.

Preoperative and postoperative clinical and functional evaluations were performed using the Visual Analog Scale (VAS) for pain10 and the American Orthopaedic Foot and Ankle Society (AOFAS) Ankle-Hindfoot Scale (maximum possible postoperative score: 94/100, because the scale awards 6 points for normal or only mildly restricted subtalar motion).11 Patient satisfaction was also assessed and categorized as dissatisfied, satisfied, or very satisfied.

For preoperative planning, weight-bearing anteroposterior and lateral radiographs of both feet and ankles, axial radiographs of both calcanei, and computed tomography scans were evaluated. The following parameters were measured on weight-bearing lateral foot radiographs: 1) Talocalcaneal height (TCH): distance from the talar dome to the plantar cortex of the calcaneal tuberosity measured along a line perpendicular to the ground, expressed in centimeters. 2) Talar declination angle (TDA): angle formed between a line perpendicular to the ground and a line perpendicular to the longitudinal axis of the talus. 3) Calcaneal declination angle (CDA): angle formed between a line tangent to the plantar cortex of the anterior process and calcaneal tuberosity and a line parallel to the ground. 4) Meary’s angle (or Meary’s line): angle formed by the longitudinal axes of the talus and the first metatarsal. If the talar inclination exceeds that of the first metatarsal, the resulting angle is considered negative (Figure 1). All measurements were performed by one of the authors using a goniometer.











Surgical Technique

In six patients, the extensile lateral approach described by Benirschke and Sangeorzan was used. Patients were positioned in the lateral decubitus position with pelvic straps, elevation of the operative limb, and a thigh tourniquet. The vertical limb of the incision was made longitudinally between the lateral border of the Achilles tendon and the posterior border of the fibula, with identification and protection of the sural nerve. The horizontal limb was made along the junction between the plantar and lateral skin. During dissection, care was taken to avoid injury to the peroneal tendons. The first step consisted of resection of the lateral wall of the calcaneus using a saw or osteotome when calcaneal widening was present, followed by removal of the subtalar articular cartilage. In cases of varus malalignment, a Dwyer-type osteotomy was performed using a saw or osteotome, whereas a medial sliding osteotomy was performed when valgus malalignment was present. The joint was distracted with a laminar spreader, and a PEEK spacer was inserted together with bone graft harvested from the previous bone cuts. Fixation was then achieved with two fully threaded 6.5- or 7.0-mm cannulated screws under fluoroscopic guidance.

In one patient, a posterolateral approach was used because substantial calcaneal widening was not present. The patient was positioned supine, and the incision included only the vertical limb of the extensile lateral approach.



RESULTS

All patients reported hindfoot pain and stiffness and had failed conservative treatment, including oral analgesics, orthotics, and physical therapy. None reported anterior ankle pain.

Radiographs of all patients demonstrated subtalar osteoarthritis and collapse of the posterior calcaneal facet. Five patients had calcaneal widening associated with varus deformity >10°, whereas two had varus deformity without widening.

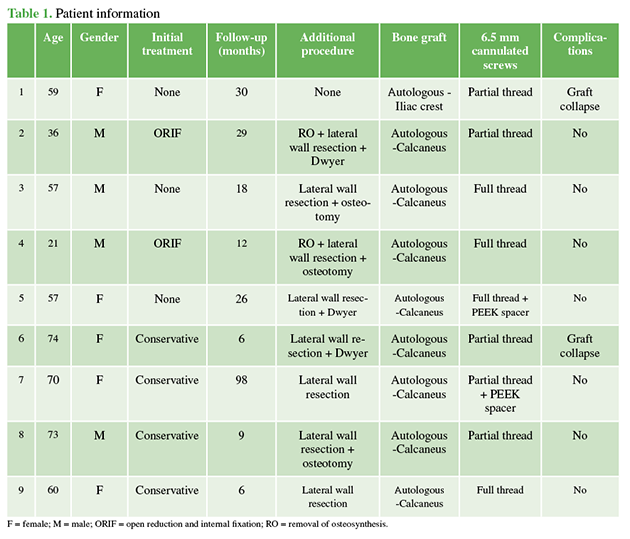

The mean postoperative follow-up was 32 months (range 6-98 months) (Table 1).













Clinical and Functional Assessments

According to the visual analog scale, the mean pain score was 7.5 (min. 6, max. 9) before surgery and 1.7 (min. 0, max. 5) at the postoperative evaluation.

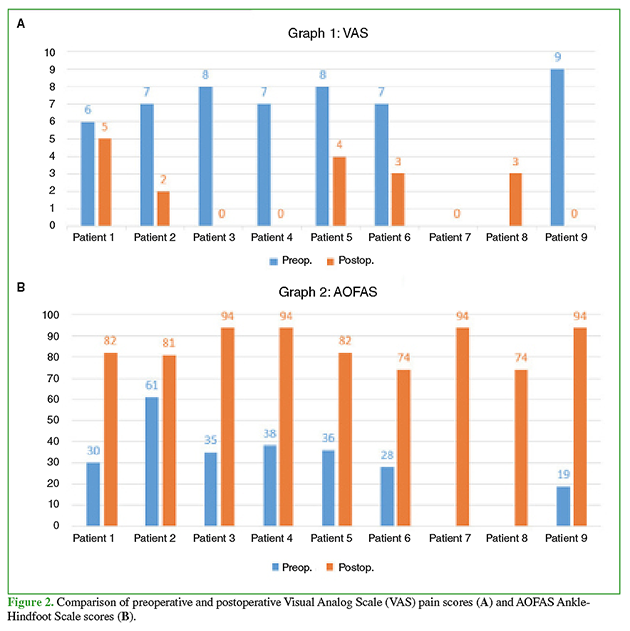

The mean AOFAS score was 35.2 (min. 19, max. 61) before surgery and 87 (min. 74, max. 94) afterward (Figure 2). Six patients reported being “very satisfied” and one reported being “satisfied” with the treatment outcome.













Radiographic Evaluation

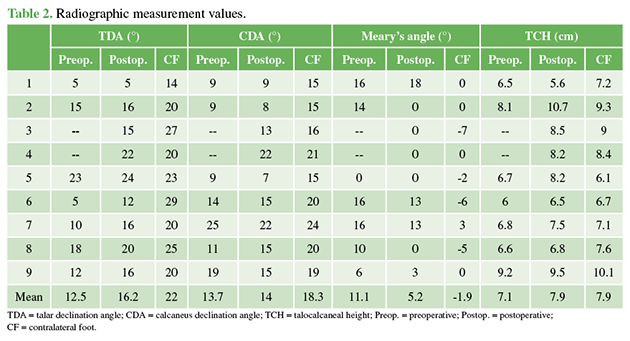

The mean talocalcaneal height (TCH) in the uninjured feet was 7.1 cm (range 5.8-10.1 cm). The mean TCH in the affected feet was 7.1 cm (range 6.0-9.2 cm) preoperatively and 7.8 cm (range 5.6-10.7 cm) postoperatively. The mean talar declination angle (TDA) in the uninjured feet was 20° (range 14°-29°). The mean preoperative TDA in the affected feet was 12.5° (range 5°-23°), improving to 17° (range 5°-24°) postoperatively. The mean calcaneal declination angle (CDA) in the uninjured feet was 18° (range 15°-23°). The mean preoperative CDA in the affected feet was 13.7° (range 9°-25°), increasing to 15° (range 7°-22°) after surgery. The mean Meary’s angle in the uninjured feet was −1.7° (range −7° to 3°). In the affected feet, the mean Meary’s angle was 11.1° (range 0°-16°) preoperatively and 6.3° (range 0°-18°) postoperatively (Table 2).













DISCUSSION

Distraction subtalar arthrodesis is a well-established indication in patients with calcaneal fracture malunion associated with loss of hindfoot height and talar horizontalization, regardless of whether anterior ankle impingement is present.12,13

Our findings are consistent with those reported in the international literature highlighting the benefits of this procedure.1,6,7,14-20 Since the initial descriptions by Gallie14 and the popularization of the technique by Carr et al.,4 restoration of hindfoot height has been one of the primary objectives. In this regard, Myerson and Quill7 proposed a loss of talocalcaneal height (TCH) greater than 8 mm together with radiographic evidence of tibiotalar impingement as an indication for surgery. Similarly, Zwipp and Rammelt13 incorporated this indication into their classification of type 3, 4, and 5 lesions, in which restoration of hindfoot height and talar declination are key treatment goals.8,15,19,20 In our series, the effectiveness of the procedure was reflected in substantial clinical improvement, with a mean reduction of 5.8 points on the Visual Analog Scale and a mean increase of 50 points on the AOFAS Ankle-Hindfoot Scale. Radiographically, mean TCH increased by 0.7 cm, TDA improved by 4.5°, and CDA improved by 1.3°, whereas Meary’s angle decreased by 4.8°. These results translated into a high level of patient satisfaction, with 88.8% of patients reporting that they were “very satisfied,” including one patient who experienced significant clinical improvement despite partial graft collapse.

Graft collapse is a recognized complication of this procedure.21 In our series, it occurred in two cases (22.2%), highlighting the importance of fixation strategy and structural support (Figure 3). Although controversy remains regarding the use of fully threaded screws1,3,4,22 versus partially threaded screws to achieve compression,5–7 our experience suggests that maintaining correction with fully threaded screws may be advantageous in preventing loss of alignment.

With regard to grafting, although autologous iliac crest bone graft remains the gold standard because of its biological properties,1-5,14,22,23 we have used alternative options to reduce donor-site morbidity. Structural grafts obtained from the Dwyer osteotomy or lateral wall resection, as well as the use of PEEK spacers,24 appear to be effective alternatives (Figure 4). The latter provide excellent structural support and may reduce the risk of graft collapse.25

Regarding surgical exposure, the extensile lateral approach provided adequate visualization for removal of previous fixation hardware and performance of complex osteotomies. However, we agree with Pollard and Schuberth21 that skin tension following distraction is a critical factor. Therefore, in severe deformities, we recommend making the vertical limb of the incision as vertical as possible to minimize the risk of wound-closure complications.















No infections or wound complications occurred, and the fusion rate in this series was 100%, comparable to that reported in other published studies.21,25

The main limitations of this study are the small sample size (7 patients) and the relatively short follow-up period. A major strength is the thorough clinical and radiographic evaluation of the patients.

Future studies with larger cohorts and longer follow-up are needed to further compare fixation methods and the types of bone graft used.



CONCLUSIONS

Distraction subtalar arthrodesis is associated with excellent clinical and radiographic outcomes in patients with calcaneal fracture malunion. The procedure reduces pain, improves function, restores hindfoot height, and improves talar declination.



REFERENCES



1.     Amendola A, Lammens P. Subtalar arthrodesis using interposition iliac crest bone graft after calcaneal fracture. Foot Ankle Int 1996;17(10):608-14. https://doi.org/10.1177/107110079601701004

2.     Bankart ASB. Fractures of the os calcis. Lancet 1942;240:175. https://doi.org/10.1016/S0140-6736(00)41474-1

3.     Buch BD, Myerson MS, Miller SD. Primary subtalar arthrodesis for the treatment of comminuted calcaneal fractures. Foot Ankle Int 1996;17(2):61-70. https://doi.org/10.1177/107110079601700202

4.     Carr JB, Hansen ST, Benirschke SK. Subtalar distraction bone block fusion for late complications of os calcis fractures. Foot Ankle 1988;9(2):81-6. https://doi.org/10.1177/107110078800900204

5.     Carr JB. Mechanism and pathoanatomy of the intraarticular calcaneal fracture. Clin Orthop Relat Res 1993;(290):36-40. PMID: 8472468

6.     Chan SC, Alexander IJ. Subtalar arthrodesis with interposition tricortical iliac crest graft for late pain and deformity after calcaneus fracture. Foot Ankle Int 1997;18(10):613-5. https://doi.org/10.1177/107110079701801002

7.     Myerson M, Quill GE Jr. Late complications of fractures of the calcaneus. J Bone Joint Surg Am 1993;75(3):331-41. https://doi.org/10.2106/00004623-199303000-00004

8.     Yoo CI, Eun IS, Jung YW. Subtalar distraction bone block arthrodesis (five cases). J Korean Foot Ankle Soc 2004;8:101-6. Available at: https://pesquisa.bvsalud.org/portal/resource/pt/wpr-222203

9.     Zwipp H, Tscherne H, Thermann H, Weber T. Osteosynthesis of displaced intraarticular fractures of the calcaneus. Results in 123 cases. Clin Orthop Relat Res 1993;(290):76-86. PMID: 8472474

10.  Aitken RC. Measurement of feelings using visual analogue scales. Proc R Soc Med 1969;62(10):989-93. https://doi.org/10.1177/003591576906201005

11.  Kitaoka HB, Alexander IJ, Adelaar RS, Nunley JA, Myerson MS, Sanders M. Clinical rating systems for the ankle-hindfoot, midfoot, hallux, and lesser toes. Foot Ankle Int 1994;15(7):349-53. https://doi.org/10.1177/107110079401500701

12.  Stephens HM, Sanders R. Calcaneal malunions: results of a prognostic computed tomography classification system. Foot Ankle Int 1996;17(7):395-401. https://doi.org/10.1177/107110079601700707

13.  Zwipp H, Rammelt S. Subtalar arthrodesis with calcaneal osteotomy. Orthopade 2006;35(4):387-98, 400-4. https://doi.org/10.1007/s00132-005-0923-5

14.  Gallie WE. Subastragalar arthrodesis in fractures of the os calcis. J Bone Joint Surg 1943;25(4):731-6.

15.  Chen YJ, Huang TJ, Hsu KY, Hsu RW, Chen CW. Subtalar distractional realignment arthrodesis with wedge bone grafting and lateral decompression for calcaneal malunion. J Trauma 1998;45(4):729-37. https://doi.org/10.1097/00005373-199810000-00018

16.  Bednarz PA, Beals TC, Manoli A 2nd. Subtalar distraction bone block fusion: an assessment of outcome. Foot Ankle Int 1997;18(12):785-91. https://doi.org/10.1177/107110079701801206

17.  Trnka HJ, Easley ME, Lam PW, Anderson CD, Schon LC, Myerson MS. Subtalar distraction bone block arthrodesis. J Bone Joint Surg Br 2001;83(6):849-54. https://doi.org/10.1302/0301-620x.83b6.10537

18.  Marti RK, de Heus JA, Roolker W, Poolman RW, Besselaar PP. Subtalar arthrodesis with correction of deformity after fractures of the os calcis. J Bone Joint Surg Br 1999;81(4):611-6. https://doi.org/10.1302/0301-620x.81b4.9386

19.  Rammelt S, Grass R, Zawadski T, Biewener A, Zwipp H. Foot function after subtalar distraction bone-block arthrodesis. A prospective study. J Bone Joint Surg Br 2004;86(5):659-68. https://doi.org/10.1302/0301-620x.86b5.14205

20.  Romash MM. Reconstructive osteotomy of the calcaneus with subtalar arthrodesis for malunited calcaneal fractures. Clin Orthop 1993;(290):157-67. PMID: 8472443

21.  Pollard JD, Schuberth JM. Posterior bone block distraction arthrodesis of the subtalar joint: a review of 22 cases. J Foot Ankle Surg 2008;47(3):191-8. https://doi.org/10.1053/j.jfas.2008.01.003

22.  Burton DC, Olney BW, Horton GA. Late results of subtalar distraction fusion. Foot Ankle Int 1998;19(4):197-202. https://doi.org/10.1177/107110079801900402

23.  Woo SH, Goh TS, Ahn TY, You JS, Bae SY, Chung HJ. Subtalar distraction arthrodesis for calcaneal malunion-comparison of structural freeze-dried versus autologous iliac bone graft. Injury 2021;52(4):1048-53. https://doi.org/10.1016/j.injury.2020.12.012

24.  Niño Gomez D, Eslava S, Anain F, Yearson D, Arrondo G, Joannas G. Use of poly (ether ether ketone) cages in foot and ankle surgery. Foot Ankle Clin 2012;17(3):449-57. https://doi.org/10.1016/j.fcl.2012.07.001

25.  Schepers T. The subtalar distraction bone block arthrodesis following the late complications of calcaneal fractures: a systematic review. Foot (Edinb) 2013;23(1):39-44. https://doi/10.1016/j.foot.2012.10.004





E. Sperone ORCID ID: https://orcid.org/0000-0001-5028-9584

J. I. Cardelle ORCID ID: https://orcid.org/0009-0003-4567-4789

J. Abad ORCID ID: https://orcid.org/0009-0002-3610-9692

A. Barrera Plazas ORCID ID: https://orcid.org/0009-0009-2462-5113

D. F. Ríos Murillo ORCID ID: https://orcid.org/0009-0009-1962-1257



Received on January 4th, 2026. Accepted after evaluation on April 21st, 2026 • Dr. ANDRÉS BIGATTI • andres_bigatti9@hotmail.com • https://orcid.org/0000-0003-1690-025X



How to cite this article: Sperone E, Bigatti A, Cardelle JI, Abad J, Barrera Plazas A, Ríos Murillo DF. Outcomes of Distraction Subtalar Arthrodesis for the Treatment of Calcaneal Fracture Malun-ion: A Case Series. Rev Asoc Argent Ortop Traumatol 2026;91(3):192-201. https://doi.org/10.15417/issn.1852-7434.2026.91.3.2285





Article Info

Identification: https://doi.org/10.15417/issn.1852-7434.2026.91.3.2285

Published: June, 2026

Conflict of interests: The authors declare no conflicts of interest.

Copyright: © 2026, Revista de la Asociación Argentina de Ortopedia y Traumatología.

License: This article is under Attribution-NonCommertial-ShareAlike 4.0 International Creative Commons License (CC-BY-NC-SA 4.0).
